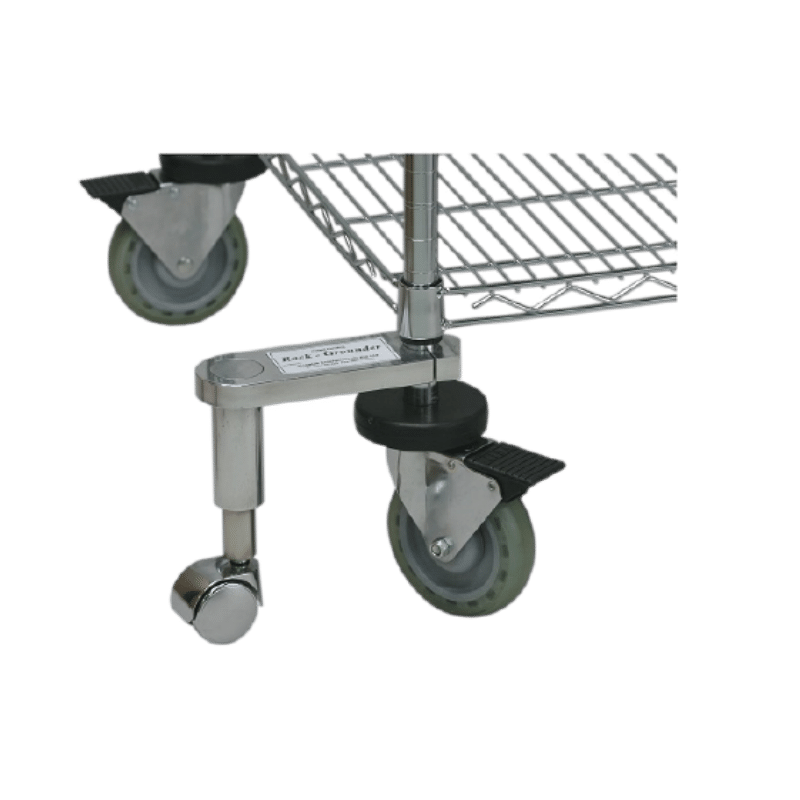

Rack Grounding Device
Megatek’s proprietary grounding device is specially designed for electrical grounding of metal push carts used in electrostatic sensitive environments.
Traditional grounding of metal push carts utilise chain connectors and have been proven ineffective due to the nature of chain connections and lack of contact pressure to the ESD ground. Conductive elastomer castors come with high cost and high maintenance.
Megatek’s Rack Grounding device is a cost effective solution that provides consistent grounding of metal cart, with easy installation and minimal maintenance required.
FEATURES
SPECIFICATION
FEATURES
- Cost effective and easy installation
- Options for pole mount and shelf mount
- Effective grounding of metal push cart while on the move
- Suspension loaded for uneven ground surface
- Made of high-grade aluminum
- Reliable with least maintenance required
- Provides < 10 Ω resistance
- Customisable for different cart designs
SPECIFICATION
- Made of polished aluminum
- 50mm Zinc die-cast twin wheel castor
- 20mm suspension travel for uneven ground
