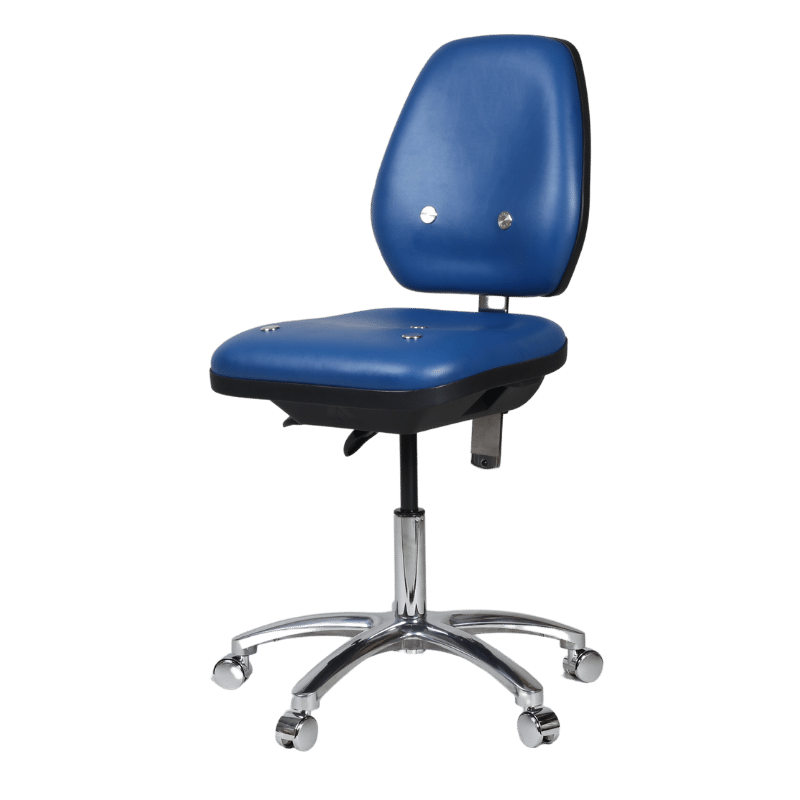

9G Series Conductive Chair
The 9G series conductive industrial chair offers excellent ergonomics and comfort due to its well-designed, moulded seat and backrest contouring. The technical 9G series chairs can be made compatible with Class 10 Cleanrooms, Class 100 Cleanrooms and ESD-sensitive environments.
The 9G conductive cleanroom ESD chairs are designed with a secondary grounding path through our proprietary, stainless steel G-STUD. G-STUDs are carefully embedded on the 9G’s seat and backrest. When seated, electrical resistance from the operator’s body to castor wheels will be kept below 1,000,000 Ω. This is in-line with static control standards outlined for operations involving ammunition, highly-explosive chemicals and flammable vapours.
Unlike traditional seating, the 9G conductive industrial chair has a plywood-free construction, making it environmentally-friendly and more importantly, eliminates possible bacterial growth in our high-humidity climate.
Common applications include exposed sensitive explosives, ammunition manufacturing and storage, chemical manufacturing and semiconductor-related industries.
- Complies with Business and Institutional Furniture Manufacturers Association (BIFMA) chair safety standards
- Complies with ISO 14644-1 and ANSI/ESD STM12.1 ESD test standards
- Megatek’s “Easy-Grip” backrest design allows chair to be manoeuvred easily
- Custom-designed seat and back contour for excellent comfort and ergonomics
- Class 4 Nitrite-coated gas lift
- Formaldehyde-free and environmental-friendly
- Secondary conductive grounding path through proprietary stainless steel G-STUD
- Seat pan size (W x D): 460mm x 460mm
- Backrest size (W x H): 410mm x 420mm
- Seat height:
Approx. 457mm – 587mm for Low chair
Approx. 553mm – 736mm for High chair - Seat depth adjustment: 40mm
- Surface resistivity: ≤10E9 Ω/□
- Resistance to ground: ≤10E5 Ω
- Cleanroom classification: Class 10 Cleanrooms, Class 100 Cleanrooms and Class 1000 Cleanrooms
